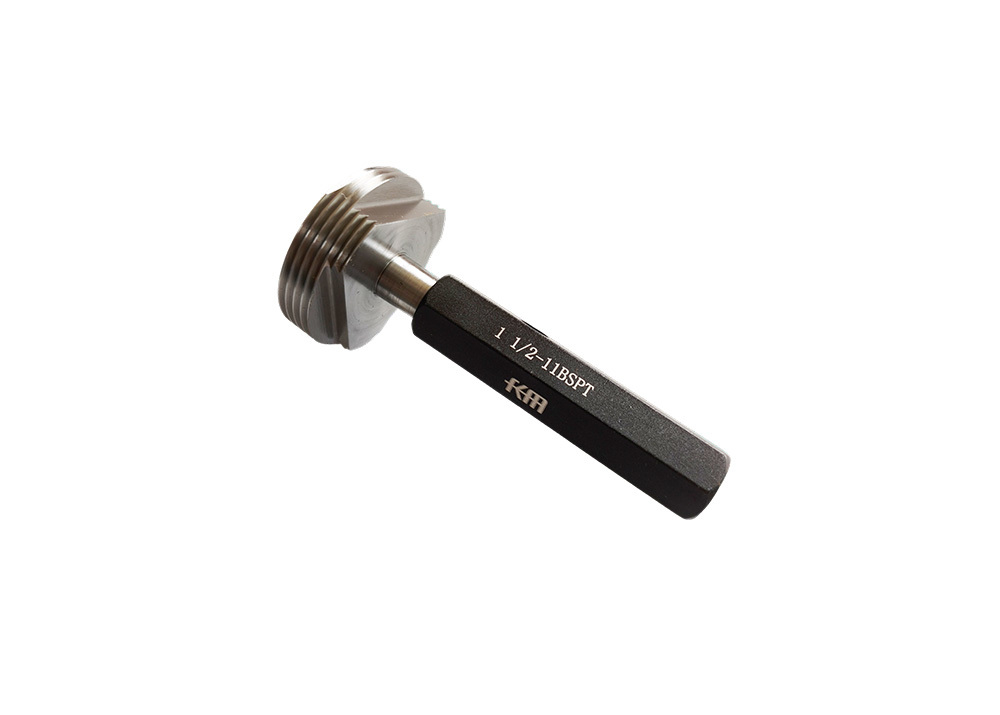

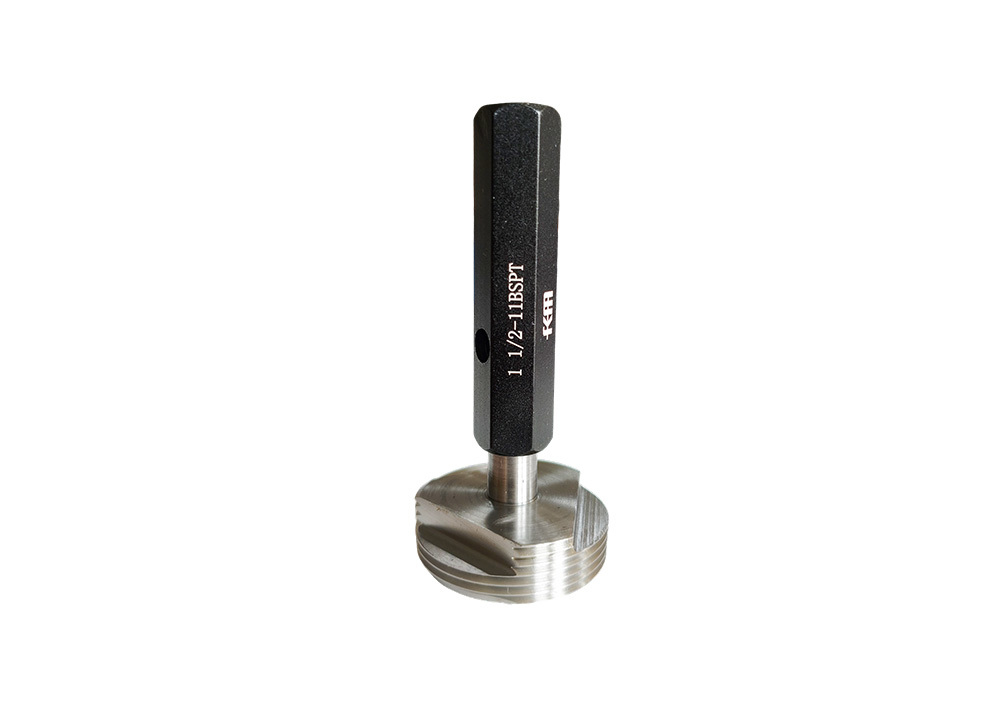

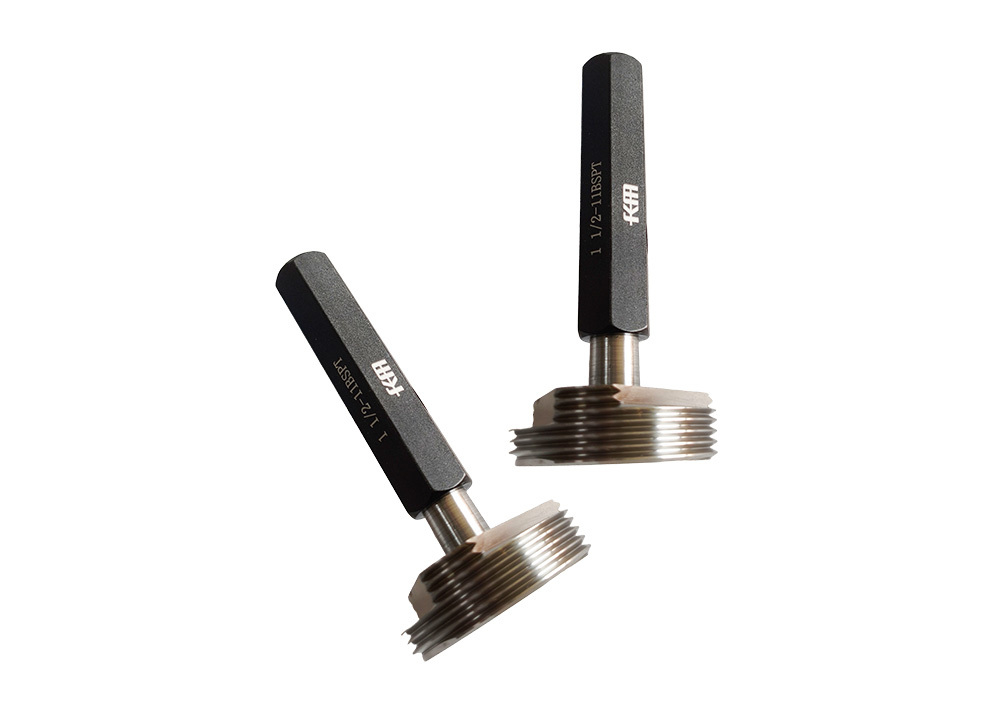

1" 1/2-11 BSPT Thread Plug Gauge for Measuring Tapered Pipe Threads with Precise Measurement

1" 1/2-11 BSPT Thread Plug Gauge for Measuring Tapered Pipe Threads with Precise Measurement

Description:

BSPT threads are economic, the accuracy-machining requirements is moderate. Just the dry sealing pipe threads can be sure sealing

connection without adding sealing material. There is no dry sealing pipe threads in British pipe threads series. BSPT threads have two

main functions, one is mechanical-connection, the other is sealing.

The BSPT thread plug gauge is a tapered thread featured with a tapered diameter that decreases from the bottom to the top of the nut,

this design that allows more pressure to be applied to the thread during the threaded connection, which in turn enhances the sealing

performance. The BSPT thread has a profile angle of 55° and a taper of 1:16, these features make it particularly suitable for applications

that require high sealing performance, such as in liquid and gas transmission pipelines

All BSPT thread gauges are manufactured according to standard: ISO 7-2, BS EN 10226-3 and BS 21.

Quick Detail:

1. British Standard.

2. Material GCR15.

3. Both right hand(RH) and left hand(LH) are available.

4. Wear resistance and corrosion resistance, stable structure, easy to use.

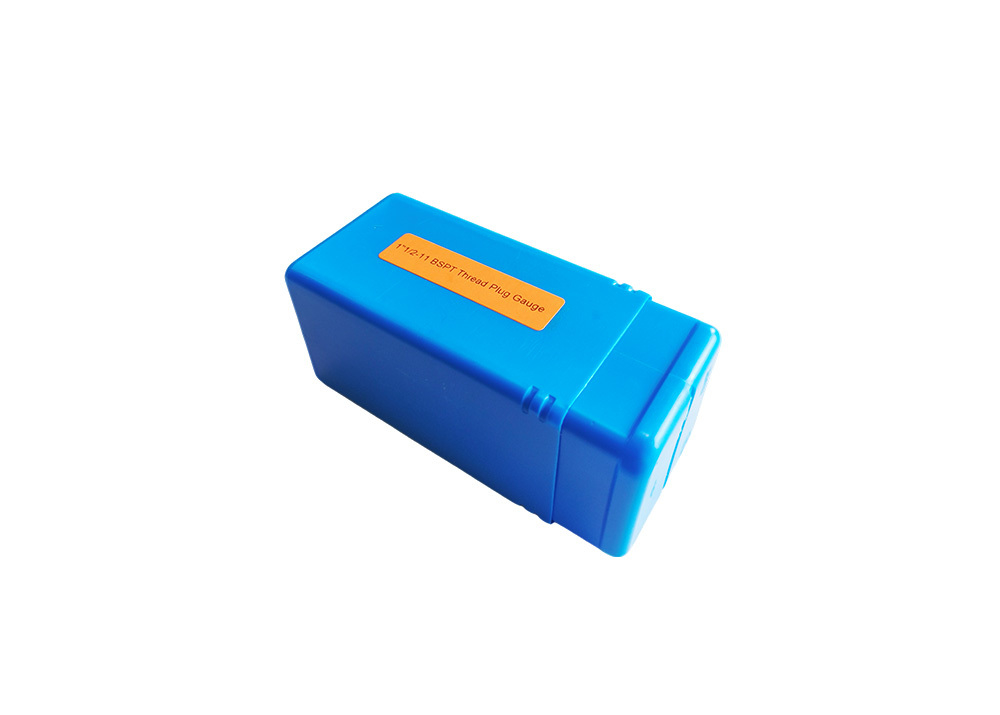

5. Supplied in fitted case.

Specification:

Applications:

BSPT thread gauge has been widely used in many fields. In the fields of hydraulic systems, water pipes, air pipes, etc., BSPT threads

are favored because of their large collar distance and good sealing effect. Especially in high-pressure liquid and gas delivery systems,

BSPT threads can effectively prevent leakage through self-sealing effect, ensuring the safety and reliability of the system. In addition,

BSPT thread gauges are also used in manufacturing, construction and other fields, such as the construction field uses BSPT thread

gauge to connect pipes, with good sealing and anti-corrosion. In industries such as oil, gas, and chemicals, engineers also frequently

use BSPT standards to ensure the compatibility and safety of piping systems.

Precautions:

1. Do not use it for non-gauge inspection purposes, because there are functional sharp parts in the thread

    and the corners of the gauge part, which is easy to cause injury to the operator.

2. Before use, please use oil to invade the gauge and the product, or wipe it with a clean cloth to confirm

    whether the gauge has rust, scratches, burrs, etc.

3. When using, apply fully with anti-rust lubricating oil, do not apply impact to the gauge.

4. When storing the gauge, dust, chips, etc. should be removed first to prevent rust. Store the gauge in a place

    where there is no moisture and the temperature does not change much, and check it regularly.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

3) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

4) Do we accept customization?

Yes, OEM is available.
