IP65 Electronic Digital V-anvils Micrometer with Large LCD Display for Efficient Measurement
-
Markeren
Large LCD Display V-anvils Micrometer
,Metric/Inch Measurement Digital Micrometer
,SPC Data Output Electronic Micrometer
-
GarantieEen jaar
-
MetingMetrisch/inch
-
Bereik1-15 mm
-
Oplossing0,001 mm
-
Nauwkeurigheid0.002 mm
-
Bescherming van beschermingIP65
-
FunctieGrote LCD vertoning
-
Het meten van gezichtCarbide meetvlak
-
VerwerkingFijne lappen
-
PakketABS -doos
-
Plaats van herkomstShaanxi, China
-
MerknaamKM
-
CertificeringISO DIN GB RoHS
-
ModelnummerKM-2205-315
-
Verpakking DetailsABS-doos 22*12*5 cm 0,55 kg
-
LevertijdBinnen 15 dagen
-
BetalingsconditiesT/T, L/C, D/P, D/A, Western Union, PayPal, MoneyGram
-
Levering vermogen50000 -stukken/maand

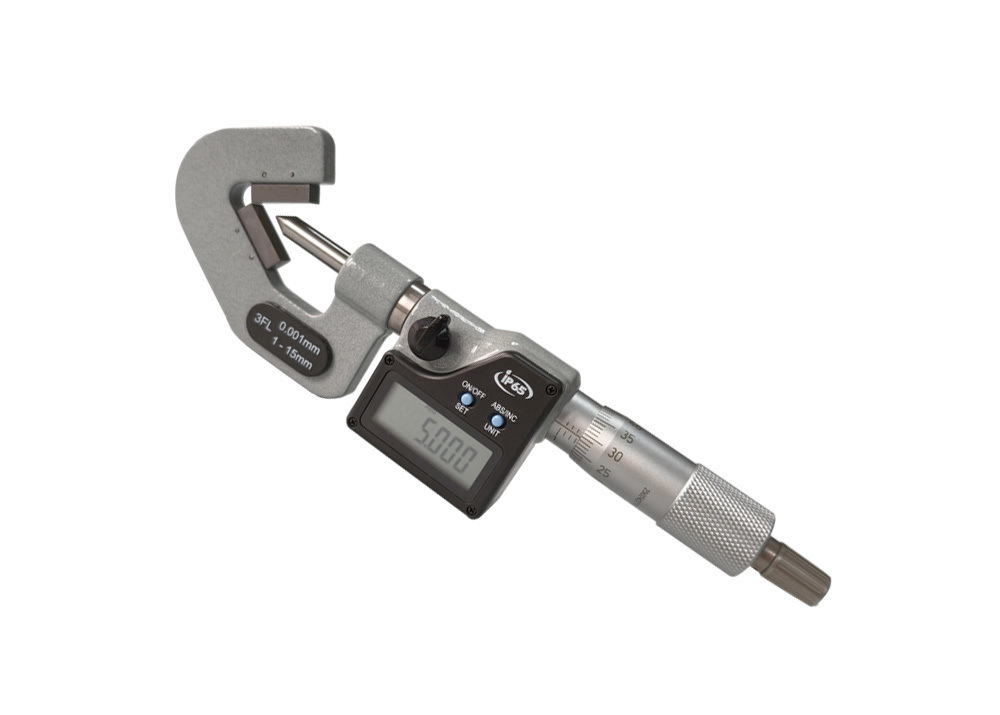

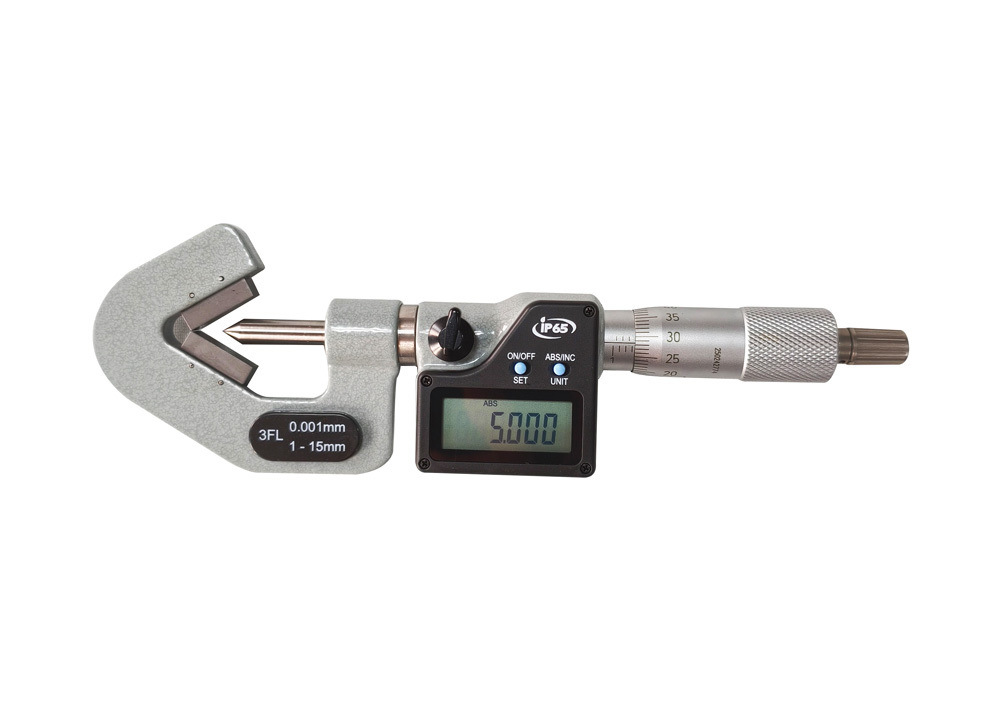

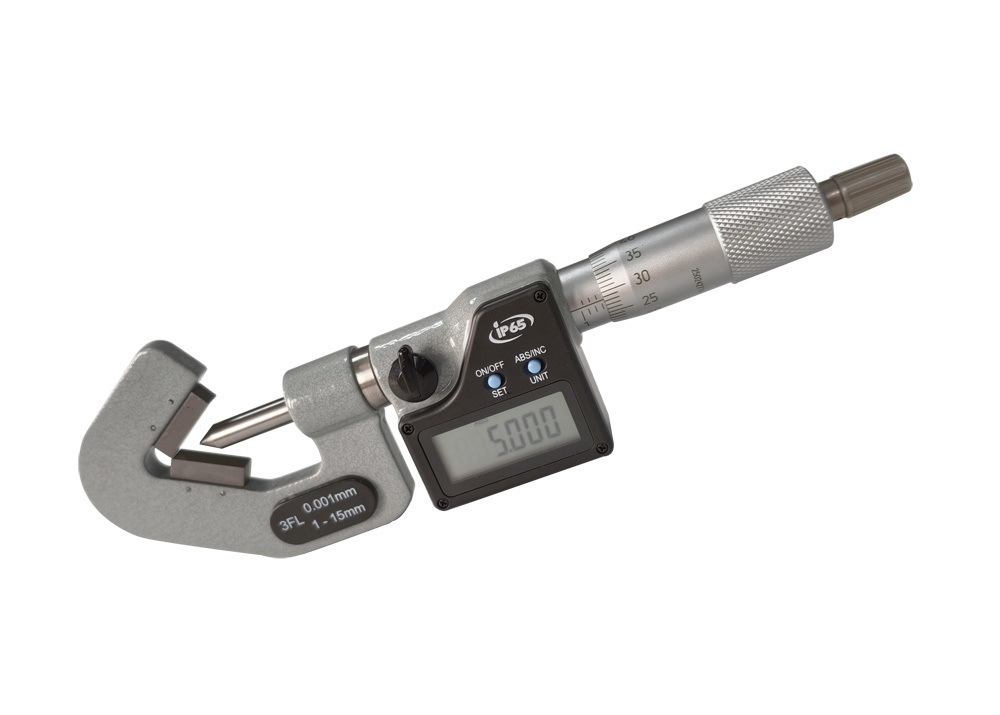

IP65 Electronic Digital V-anvils Micrometer with Large LCD Display for Efficient Measurement
Electronic Digital V-anvils Micrometer
Measuring Range 1-15mm with 0.002mm Precision
Key Features:
- Designed for measuring outside diameter of cutting tools with odd number flutes (taps, reamers, end mills).
- IP65 protection level (oil, water and dust proof).
- Clear LCD display for fast, accurate readings.
- Function keys: OFF/ON, SET, ABS/INC, UNIT (in/mm conversion).
- Carbide measuring faces for accuracy and wear resistance.
- Ratchet thimble for precise force application.
- SPC data output capability.

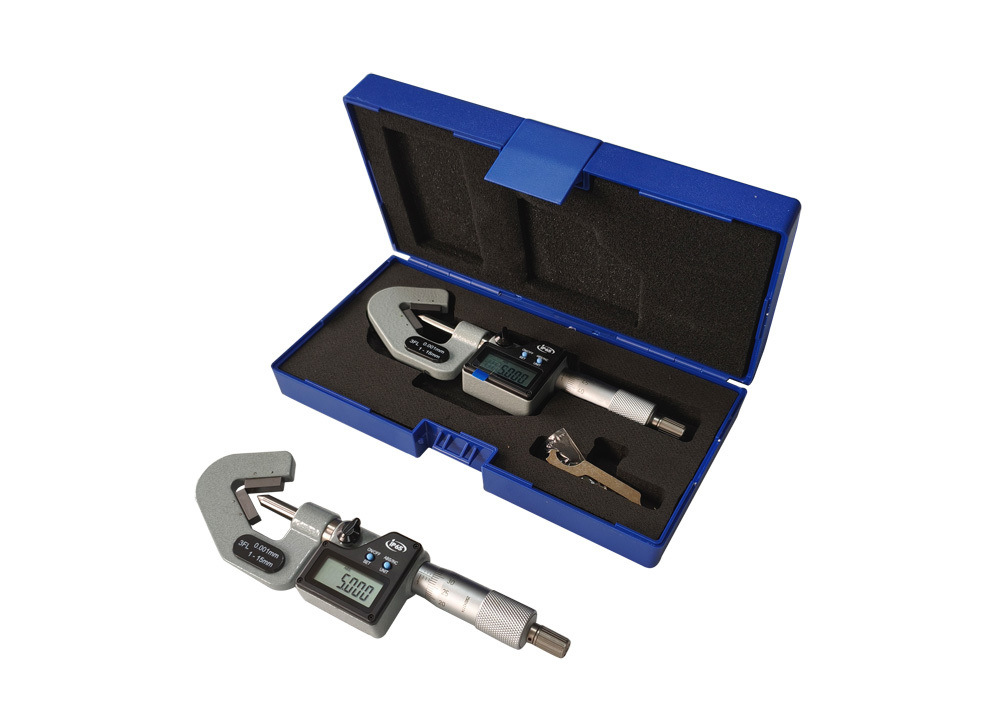

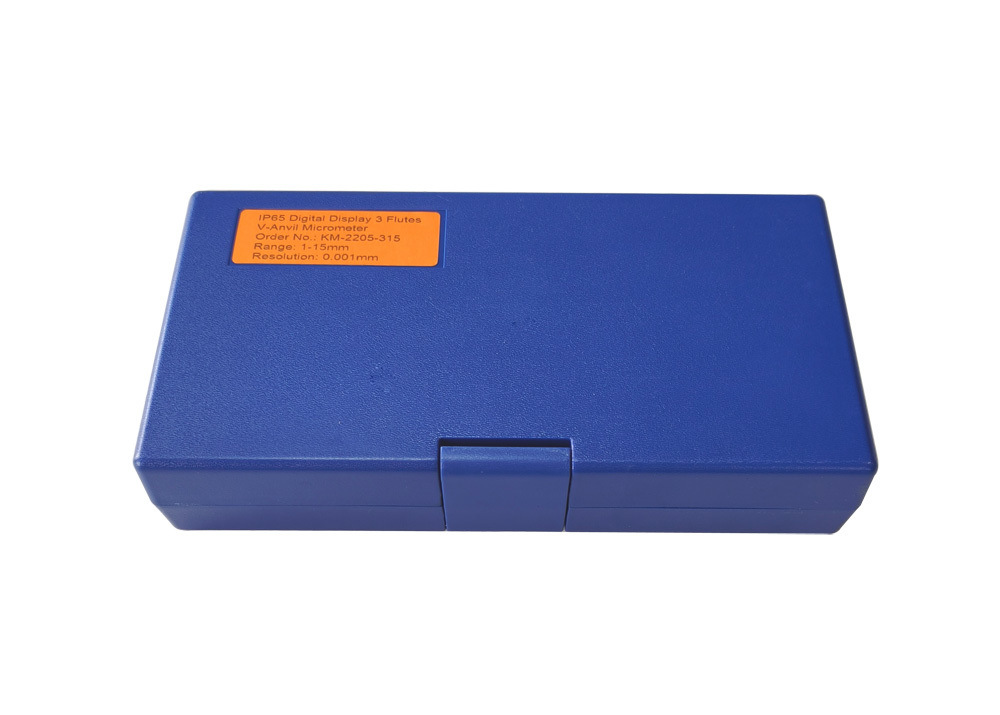

- Includes protective fitted case.
The KM digital v-anvils micrometer is specifically engineered for measuring outer diameters of cylindrical tools with odd-numbered flutes. Available in 3, 5, and 7 flute configurations to accommodate various measurement requirements.
Featuring IP65 protection, this micrometer maintains precision in challenging environments. The hardened, ground spindle and carbide anvil ensure durability and consistent accuracy. The large LCD display provides immediate, clear measurement results without complex calculations.
Technical Specifications
| Order No. | Measuring Range | Resolution | Accuracy | Flute Number |
|---|---|---|---|---|
| KM-2205-315 | 1-15mm | 0.001mm | ±0.002mm | 3 |
| KM-2205-320 | 5-20mm | 0.001mm | ±0.002mm | 3 |
| KM-2205-335 | 20-35mm | 0.001mm | ±0.003mm | 3 |
| KM-2205-350 | 35-50mm | 0.001mm | ±0.003mm | 3 |
| KM-2205-365 | 50-65mm | 0.001mm | ±0.003mm | 3 |
| KM-2205-380 | 65-80mm | 0.001mm | ±0.003mm | 3 |
| KM-2205-395 | 80-95mm | 0.001mm | ±0.004mm | 3 |
| KM-2205-325 | 2.3-25mm | 0.001mm | ±0.002mm | 3 |
| KM-2205-351 | 25-50mm | 0.001mm | ±0.003mm | 3 |
| KM-2205-525 | 5-25mm | 0.001mm | ±0.002mm | 5 |
| KM-2205-545 | 25-45mm | 0.001mm | ±0.003mm | 5 |
| KM-2205-565 | 45-65mm | 0.001mm | ±0.003mm | 5 |
| KM-2205-585 | 65-85mm | 0.001mm | ±0.004mm | 5 |
| KM-2205-5105 | 85-105mm | 0.001mm | ±0.004mm | 5 |
| KM-2205-725 | 5-25mm | 0.001mm | ±0.002mm | 7 |
| KM-2205-745 | 25-45mm | 0.001mm | ±0.003mm | 7 |
| KM-2205-765 | 45-65mm | 0.001mm | ±0.003mm | 7 |
| KM-2205-785 | 65-85mm | 0.001mm | ±0.004mm | 7 |
Operation & Maintenance
- Clean measuring faces with soft cloth before use, then bring anvils together carefully using ratchet stop.
- After use, separate anvils and tighten fixing screws to prevent rust from prolonged contact.
- Store in stable environment - avoid humid areas with large temperature fluctuations.
- Never measure moving/hot objects or use as striking tool.
Industrial Applications
Machinery Manufacturing: Ensures precise measurement of mechanical part diameters to maintain quality standards.
Electronics Industry: Measures component sizes with high accuracy to enhance product performance.
Precision Instrument Manufacturing: Verifies dimensional accuracy of sensitive instruments for optimal functionality.
Company Information
Manufacturer: Deko Corporation, specializing in KM brand precision measuring tools.
Product Range: Comprehensive selection including dial indicators, micrometers, calipers, bore gauges, and more.
Trade Terms: FOB, CFR, CIF, EXW available.
Payment Options: T/T, L/C, D/A, D/P, PayPal, Western Union accepted.
Customization: OEM services available.
Warranty: 1-year guarantee with replacement of defective parts.
