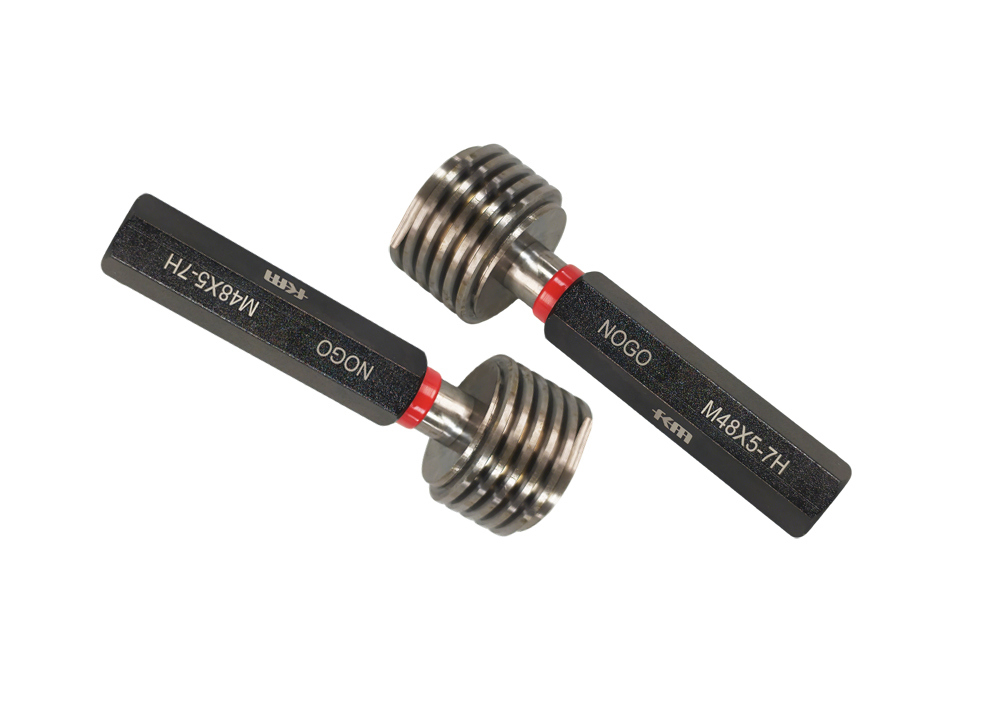

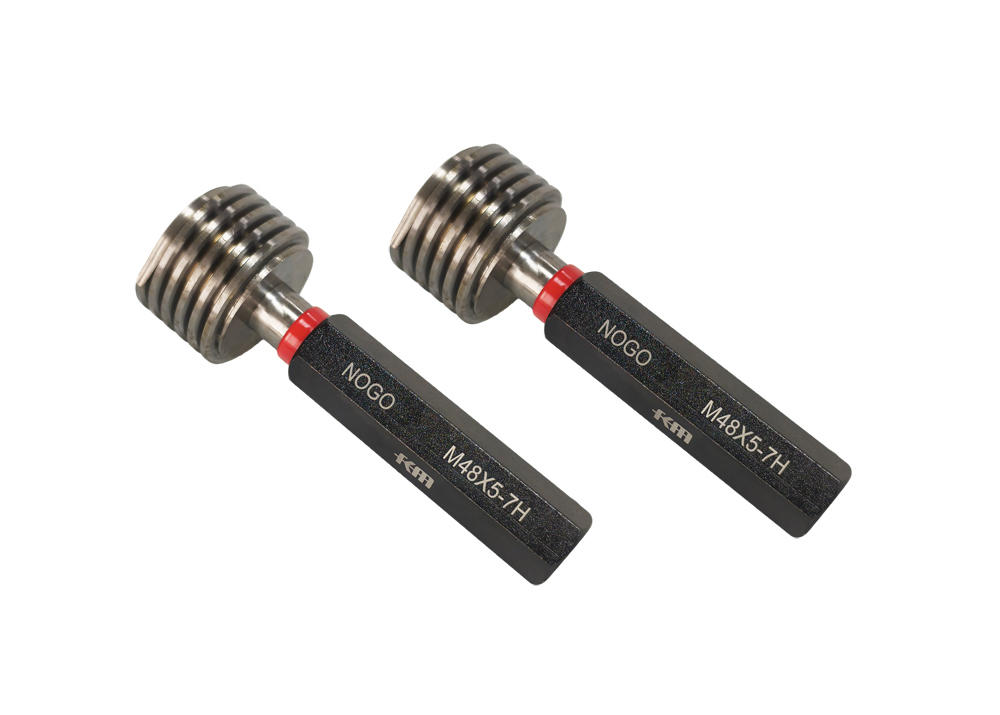

Metric Thread Plug Gauge M48X5 7H NOGO Type Precision Measuring Tool
-
Markeren
7H Thread Plug Gauge M48X5
,NOGO Type Thread Plug Gauge M48X5
,Precision Thread Plug Gauge M48X5
-
GarantieEén jaar
-
TypeMetrische draadplugmeter
-
MateriaalGereedschapstaal
-
Conform standaardDIN13
-
DraadspecificatieM48X5-7H NOGO
-
Nauwkeurigheid5g, 5u, 6g, 6u, 7g, 7u, enz
-
Gebruikvoor werken en inspectie
-
MeetobjectControleer schroefdraad- of tapgaten, enz
-

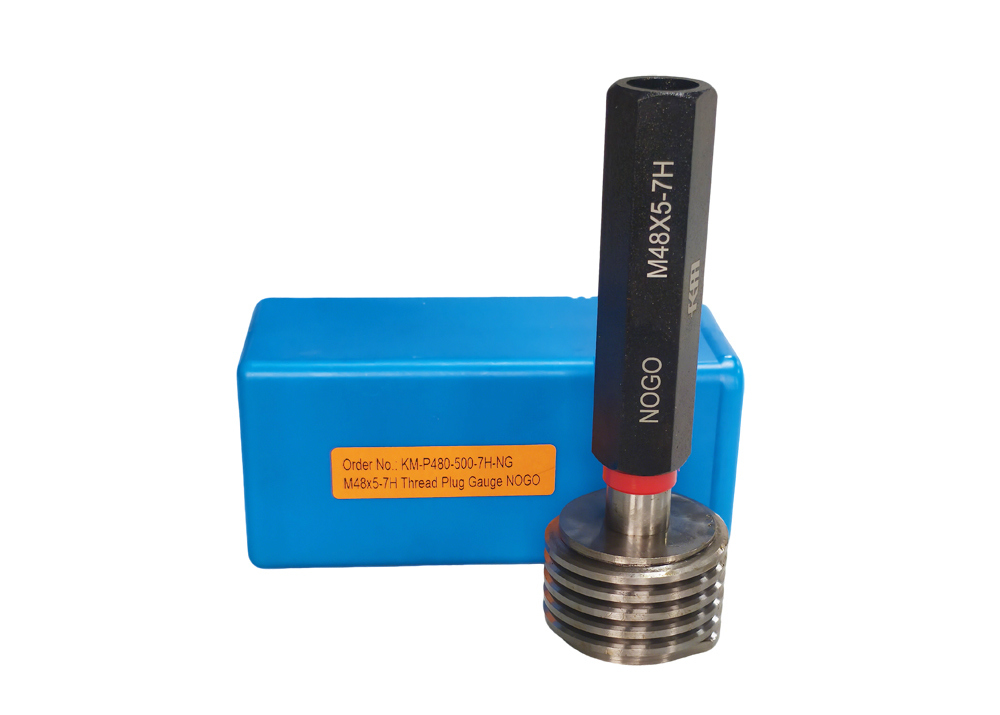

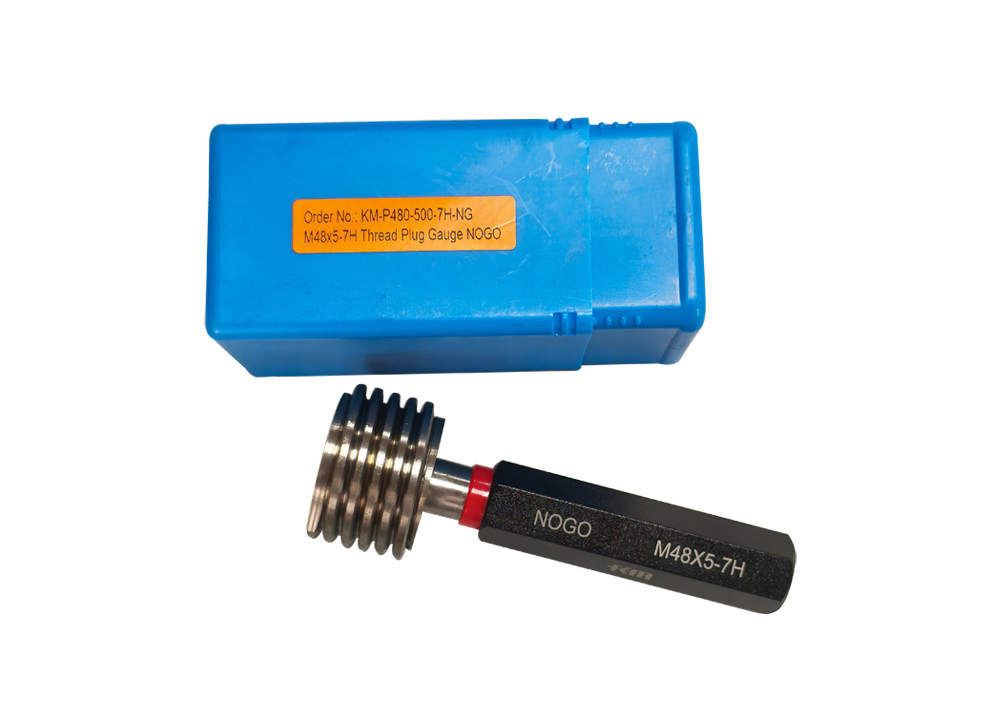

PakketABS-doos
-
Plaats van herkomstShaanxi, China
-
MerknaamKM
-
CertificeringISO DIN GB RoHS
-
ModelnummerKM-P480-500-7H-NG
-
Verpakking DetailsABS Doos 15*4.5*4.5 cm/stuk 0.36 kg/stuk
-
LevertijdBinnen 15 dagen
-
BetalingsconditiesT/T, L/C, D/P, D/A, Western Union, PayPal, MoneyGram
-
Levering vermogen50000 -stukken/maand
Metric Thread Plug Gauge M48X5 7H NOGO Type Precision Measuring Tool
Metric Thread Plug Gauge M48X5 7H NOGO Type Precision Measuring Tool
These metric plug ring gauges are precision metrology tools designed for checking threaded or tapped holes. They verify proper thread type, major diameter, minor diameter, pitch diameter, and pitch against mating thread gauges.
Key Features
- Metric thread plug gauge with high precision measurement
- Available in various accuracy grades: 5g, 5h, 6g, 6h, 7g, 7h
- Multiple types available: GO, NOGO, and combination GO/NOGO
- Conforms to DIN13 standard
- Wear-resistant and corrosion-resistant construction
- Stable structure for easy operation
- Supplied in protective fitted case
Specifications
| Order No. | Size | Coarse | Fine | Accuracy | ||||
| Pitch 1 | Pitch 2 | Pitch 3 | Pitch 4 | Pitch 5 | Pitch 6 | |||
| KM-P180 | M18.0 | 2.50 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 |
4h 4h5h 5g 5h 5h6h 6g 6h 7g 7h |
| …… | …… | …… | …… | …… | …… | …… | ||
| KM-P320 | M320 | |||||||
Applications
Thread plug gauges are essential for inspecting thread dimensions in various industries including automotive manufacturing, aerospace, machining, and electronic processing. They help ensure thread accuracy and improve product quality control.
Usage Precautions
- Avoid touching the working surface with bare hands to prevent rust.
- Store properly on tool cabinet tables or wooden backing plates - never on machine tool holders or guide rails.
- Regularly inspect for damage, rust, or deformation.
- For rust prevention, soak in gasoline, wipe carefully, and apply anti-rust oil.
- Never store working surfaces of two gauges together to prevent adhesion.
- Clean thoroughly after use and store in dry conditions.
Packing & Shipping
Manufacturer Information
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
Frequently Asked Questions
Product Range: We carry dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
Warranty: All products come with one year warranty. Defective parts will be replaced promptly.
