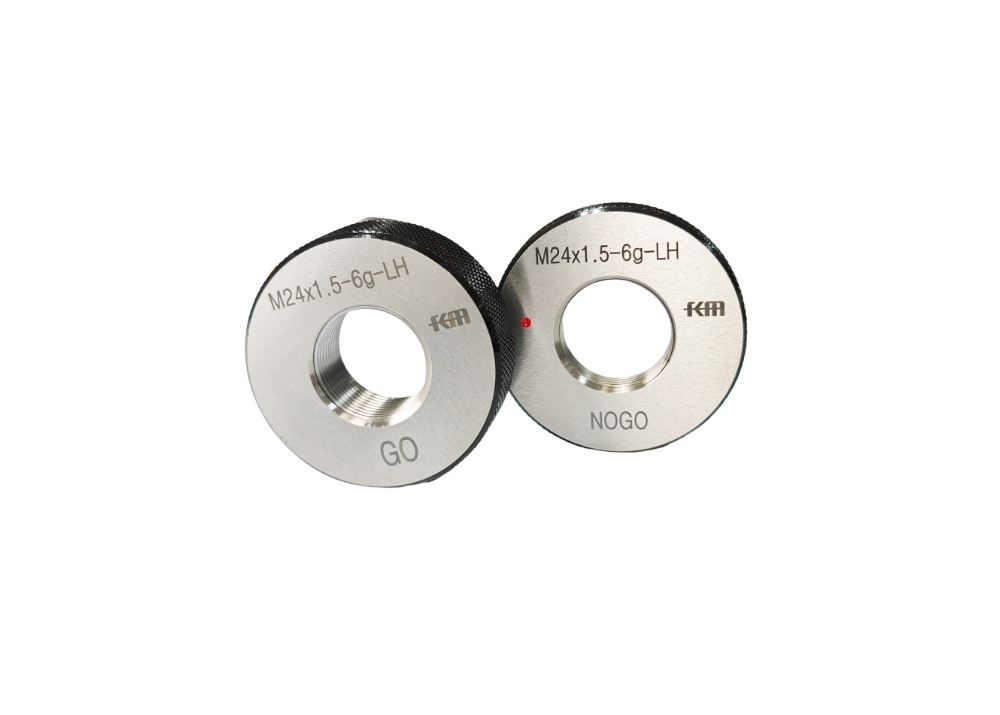

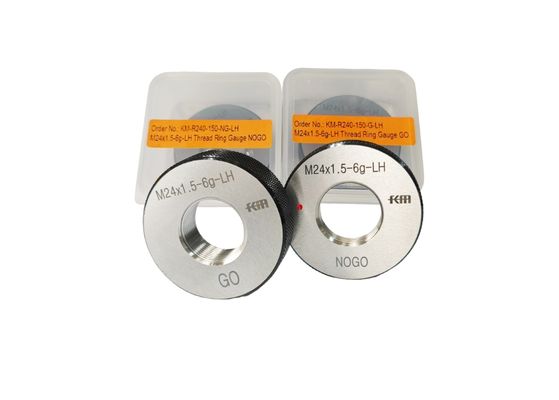

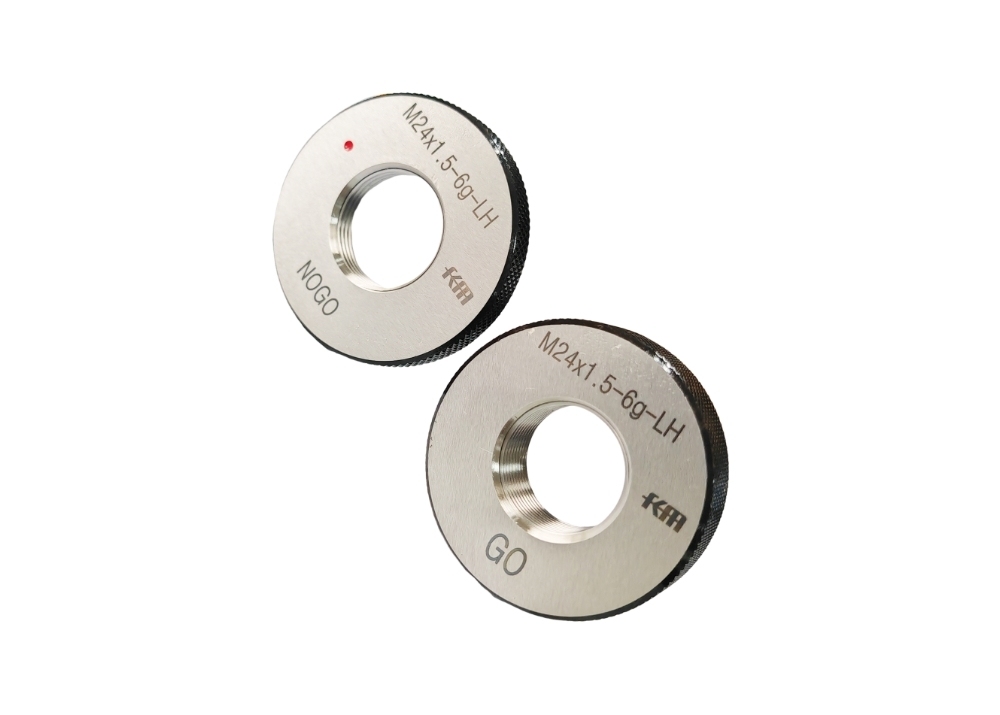

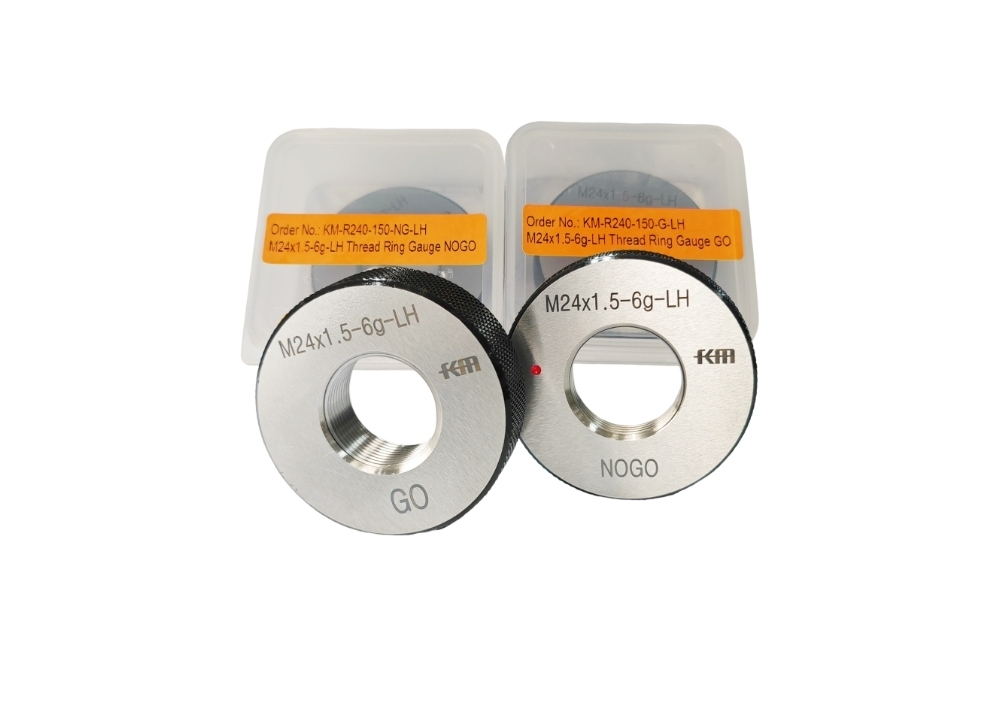

Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking

Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking

Producten - Ring- en stekkermeter - Metrische ring- en stekkerdraadmeter
  • Markeren

    M24X1.5 Thread Ring Gauge

    ,

    6g Accuracy Thread Ring Gauge

    ,

    Left Hand Metric Thread Ring Gauge

  • Garantie
    Eén jaar
  • Type
    Gauge van de draadring
  • Standaard
    DIN13, DIN2280-89
  • Meting
    Metriek
  • Draadspecificatie
    M24x1,5-6g-LH NOGO
  • Vorm
    Ronde
  • Meetobject
    Externe productdraden op schroeven, bouten
  • Gebruik
    voor werken en inspectie
  • Nauwkeurigheid
    6g, 6u, 7g, 7u, 8g, 8u, enz.
  • Pakket
    ABS-doos
  • Plaats van herkomst
    Shaanxi, China
  • Merknaam
    KM
  • Certificering
    ISO DIN GB RoHS
  • Modelnummer
    KM-R240-150-LH
  • Verpakking Details
    ABS Doos 7*7*3 cm/stuk 0,36 kg/stuk
  • Levertijd
    Binnen 15 dagen
  • Betalingscondities
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Levering vermogen
    50000 stuks/maand

Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking

  • Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
  • Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
  • Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
  • Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
  • Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
Prijs opvragen Contact nu
Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
Metric thread ring gauges are precision inspection tools used for checking the thread of outside diameter on screws, bolts and threaded rods. These gauges typically have normal accuracy levels including 6g, 6h, 7g, 7h, 8g, and 8h.
Our facility features first-grade thread machining centers and measuring equipment to provide high precision thread ring gauges to customers worldwide.
Product Features
  • Metric thread ring gauge for precise measurements
  • Available in multiple accuracy grades: 6g, 6h, 7g, 7h, 8g, 8h
  • Includes both GO and NOGO types for comprehensive verification
  • Conforms to DIN13 and DIN2280-89 standards
  • Wear-resistant and corrosion-resistant construction
  • Stable structure for easy operation
  • Supplied in protective fitted case
Technical Specifications
Order No. Size Coarse Fine Accuracy
KM-R001 M1.0 0.25 0.20 3h 4h 5g6g 5h4h 5h6h 6e 6f 6g 6h 7g6g 7h6h 8g 8h
KM-R011 M1.1 0.25 0.20
KM-R012 M1.2 0.25 0.20
KM-R014 M1.4 0.30 0.20
KM-R016 M1.6 0.35 0.20
KM-R018 M1.8 0.35 0.20
KM-R020 M2.0 0.40 0.25
KM-R022 M2.2 0.45 0.25
KM-R025 M2.5 0.45 0.35
KM-R030 M3.0 0.50 0.35
KM-R035 M3.5 0.60 0.35
KM-R040 M4.0 0.70 0.50
KM-R050 M5.0 0.80 0.50
KM-R060 M6.0 1.00 0.75 0.50
KM-R080 M8.0 1.25 1.00 0.75
KM-R100 M10.0 1.50 1.25 1.00
KM-R120 M12.0 1.75 1.50 1.25
KM-R140 M14.0 2.00 1.50 1.25
KM-R160 M16.0 2.00 1.50 1.00
KM-R180 M18.0 2.50 2.00 1.50
KM-R320 M320


Applications
The threaded ring gauge is primarily used to measure thread diameter and pitch. With advantages of high precision, wide measurement range, and simple operation, these gauges are widely used in machinery manufacturing, aerospace, automotive manufacturing, and other industrial fields.
Usage Precautions
  • Avoid touching the working surface with bare hands to prevent rust
  • Store properly on tool cabinet tables or wooden backing plates - never on machine tool holders or guide rails
  • Inspect regularly for damage, rust, or deformation
  • If rust appears, soak in gasoline, carefully wipe clean, and apply anti-rust oil
  • Never store working surfaces of two gauges together to prevent sticking
  • After use, wipe clean and store in dry conditions

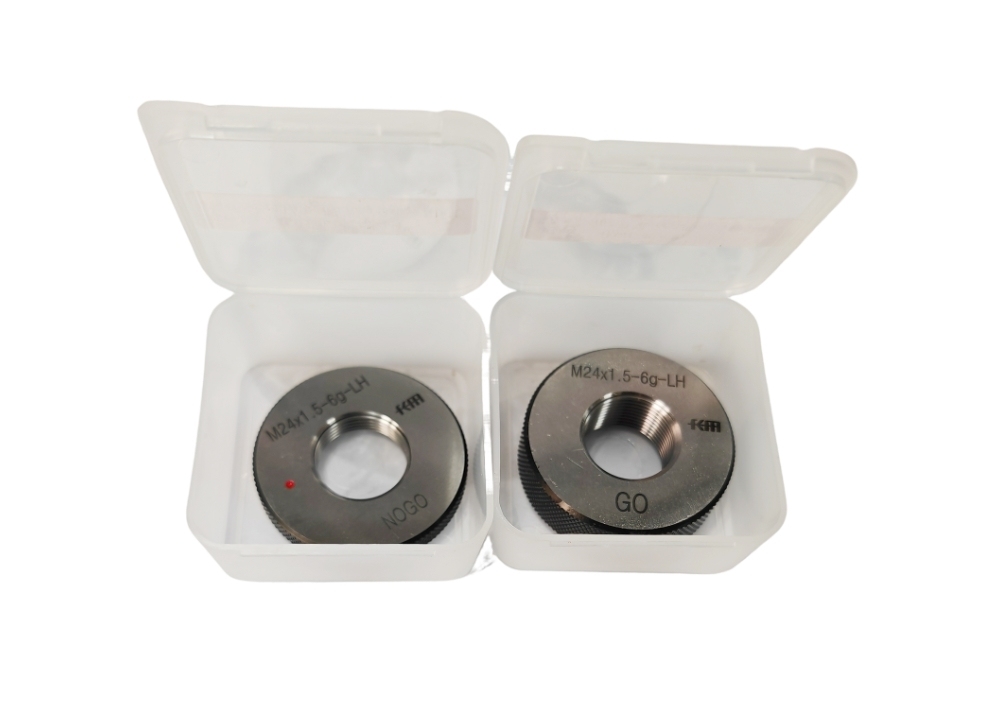

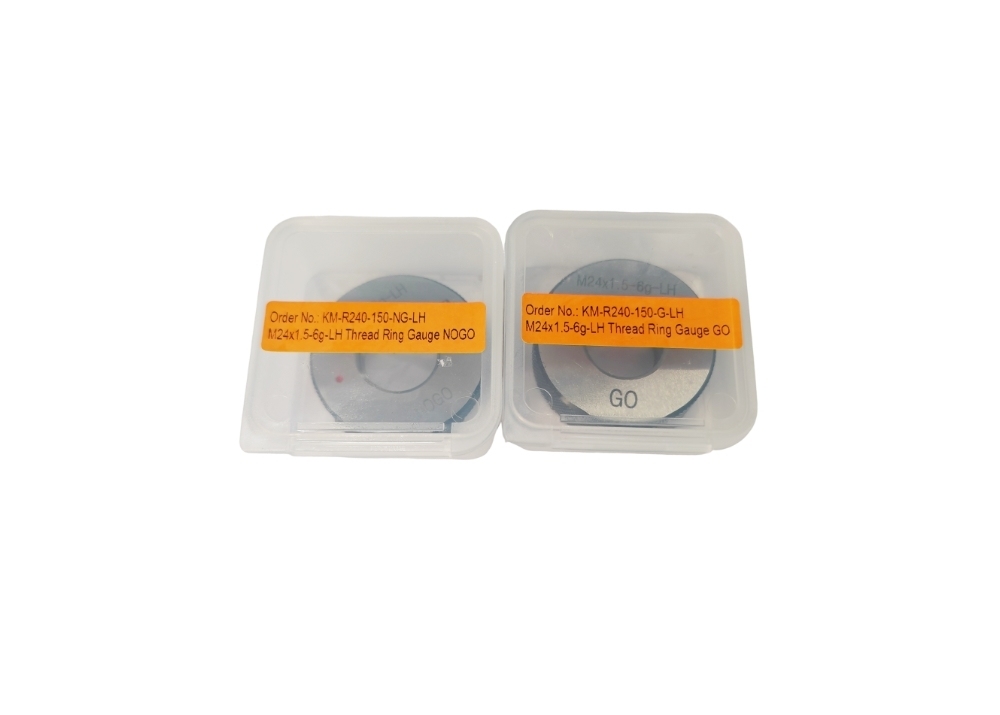

Packing & Shipping
Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking 0
Company Profile
Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking 1
Frequently Asked Questions
1) Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China.
2) What are the terms of trade?
We support FOB, CFR, CIF, and EXW terms.
3) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
4) Do we accept customization?
Yes, OEM services are available.
