Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking
-
Markeren
NOGO Thread Ring Gauge
,M56.0 Metric Thread Ring Gauge
,M56.0 GO Thread Ring Gauge
-
GarantieEén jaar
-
TypeGauge van de draadring
-
StandaardDIN13, DIN2280-89
-
MetingMetriek
-
DraadspecificatieM56x4-6g GA NOGO
-
VormRonde
-
MeetobjectExterne productdraden op schroeven, bouten
-
Gebruikvoor werken en inspectie
-
Nauwkeurigheid6g, 6u, 7g, 7u, 8g, 8u, enz.
-
PakketABS-doos
-
Plaats van herkomstShaanxi, China
-
MerknaamKM
-
CertificeringISO DIN GB RoHS
-
ModelnummerKM-R560-400
-
Verpakking DetailsABS Doos 11*11*3 cm/stuk 0,66 kg/stuk
-
LevertijdBinnen 15 dagen
-
BetalingsconditiesL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Levering vermogen50000 stuks/maand

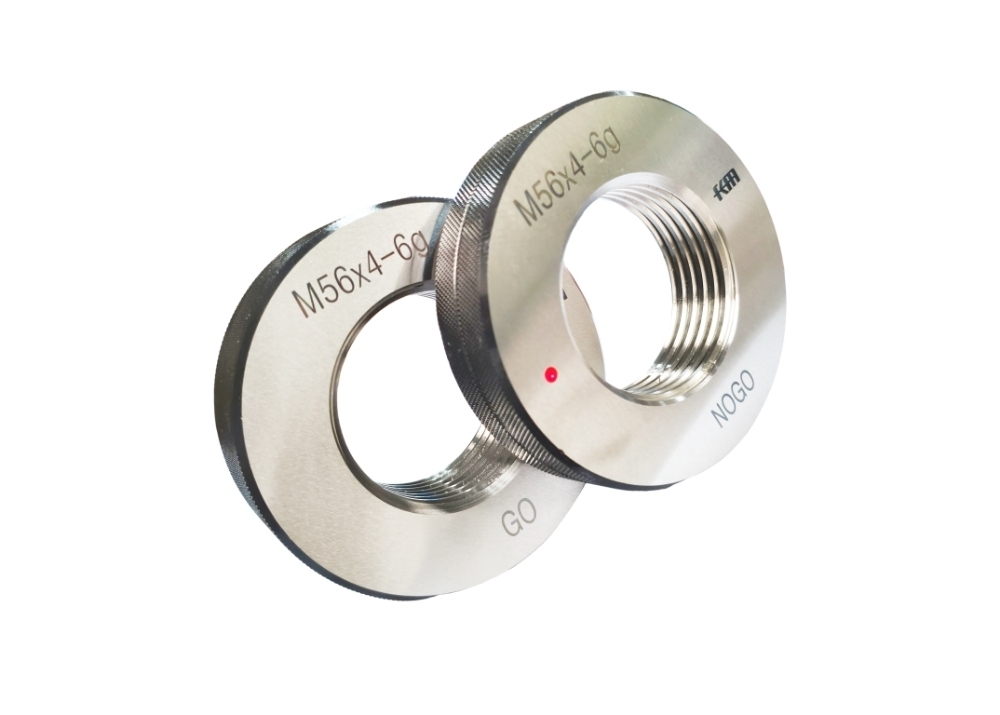

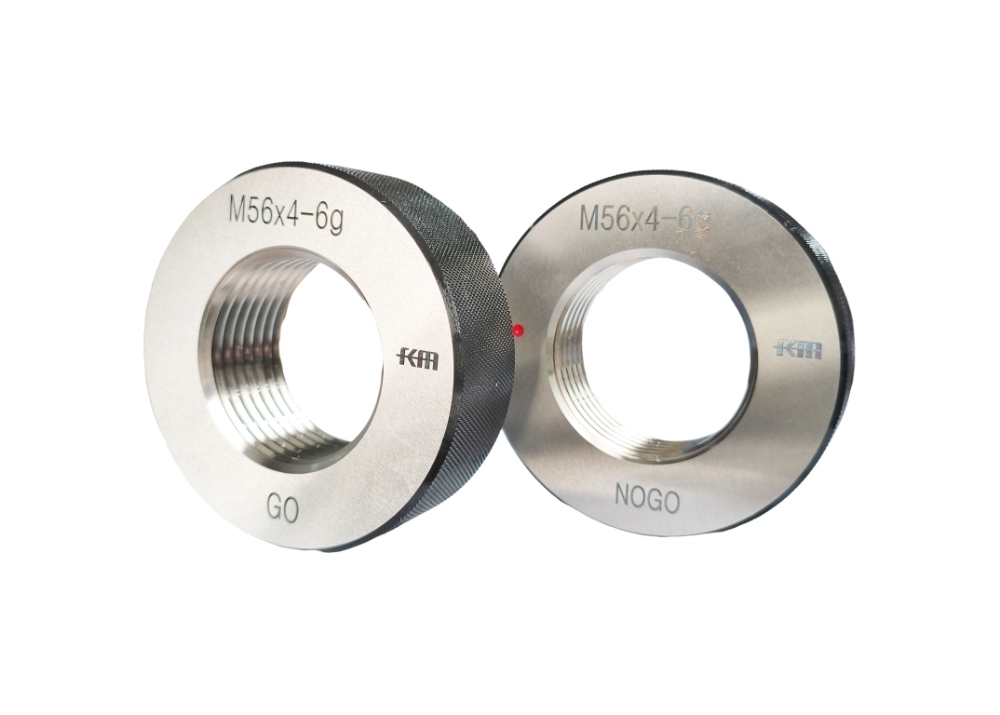

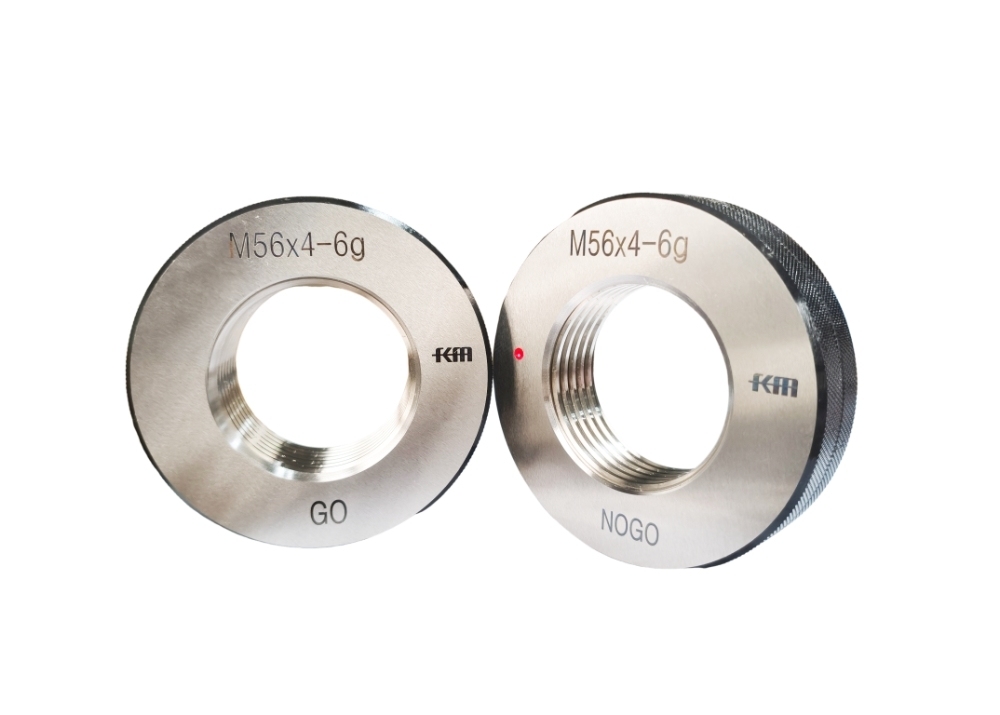

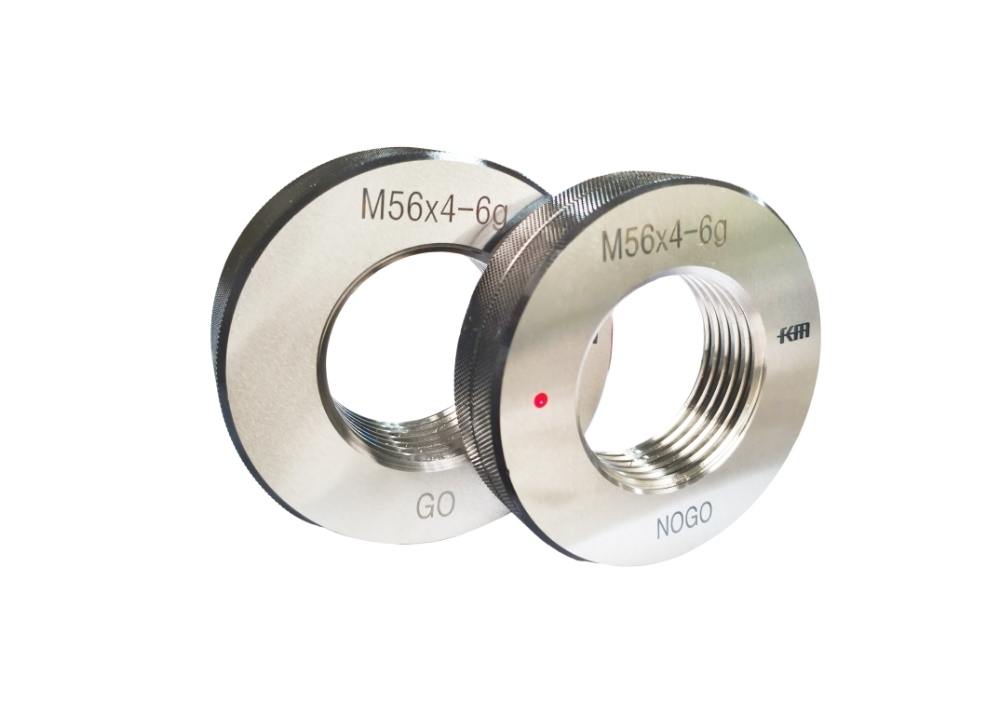

Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking
Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking
Metric thread ring gauges are precision inspection tools used for checking the thread of outside diameter on screws, bolts and threaded rods. These gauges typically have normal accuracy classifications including 6g, 6h, 7g, 7h, 8g, and 8h.
Our facility utilizes first-grade thread machining centers and measuring equipment to provide high precision thread ring gauges to customers worldwide.
GO and NOGO Functionality
Thread ring gauges come in GO and NOGO types. The GO ring gauge is machined to a minus tolerance, verifying the maximum material limit of externally threaded components. The NOGO thread ring gauge is machined to a plus tolerance, verifying the minimum material limit.
Key Features
- Precision metric thread ring gauge
- Available in accuracy classes: 6g, 6h, 7g, 7h, 8g, 8h
- Includes both GO and NOGO types
- Conforms to DIN13 and DIN2280-89 standards
- Wear-resistant and corrosion-resistant construction
- Stable structure for easy operation
- Supplied in protective fitted case
Product Specifications
| Order No. | Size | Coarse | Fine | Accuracy |
|---|---|---|---|---|
| KM-R001 | M1.0 | 0.25 | 0.20 | 3h 4h 5g6g 5h4h 5h6h 6e 6f 6g 6h 7g6g 7h6h 8g 8h |
| KM-R011 | M1.1 | 0.25 | 0.20 | |
| KM-R012 | M1.2 | 0.25 | 0.20 | |
| KM-R014 | M1.4 | 0.30 | 0.20 | |
| KM-R016 | M1.6 | 0.35 | 0.20 | |
| KM-R018 | M1.8 | 0.35 | 0.20 | |
| KM-R020 | M2.0 | 0.40 | 0.25 | |
| KM-R022 | M2.2 | 0.45 | 0.25 | |
| KM-R025 | M2.5 | 0.45 | 0.35 | |
| KM-R030 | M3.0 | 0.50 | 0.35 | |
| KM-R035 | M3.5 | 0.60 | 0.35 | |
| KM-R040 | M4.0 | 0.70 | 0.50 | |
| KM-R050 | M5.0 | 0.80 | 0.50 | |
| KM-R060 | M6.0 | 1.00 | 0.75 | 0.50 |
| KM-R080 | M8.0 | 1.25 | 1.00 | 0.75 |
| KM-R100 | M10.0 | 1.50 | 1.25 | 1.00 |
| KM-R120 | M12.0 | 1.75 | 1.50 | 1.25 |
| KM-R140 | M14.0 | 2.00 | 1.50 | 1.25 |
| KM-R160 | M16.0 | 2.00 | 1.50 | 1.00 |
| KM-R180 | M18.0 | 2.50 | 2.00 | 1.50 |
| KM-R320 | M320 |
Applications
These threaded ring gauges are primarily used to measure thread diameter and pitch with high precision. Their wide measurement range and simple operation make them ideal for machinery manufacturing, aerospace, automotive production, and other industrial applications.
Usage Precautions
- Avoid touching the working surface with bare hands to prevent rust
- Store properly on tool cabinets or wooden backing plates - never on machine tool holders or guide rails
- Inspect regularly for damage, rust, or deformation
- If rust appears, soak in gasoline, wipe carefully, and apply anti-rust oil
- Never store working surfaces together to prevent sticking
- Always clean and store in dry conditions after use
Packing & Shipping
Company Profile
Frequently Asked Questions
1) Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China.
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China.
2) What are the terms of trade?
We support FOB, CFR, CIF, and EXW shipping terms.
We support FOB, CFR, CIF, and EXW shipping terms.
3) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
4) Do we accept customization?
Yes, OEM services are available.
Yes, OEM services are available.
